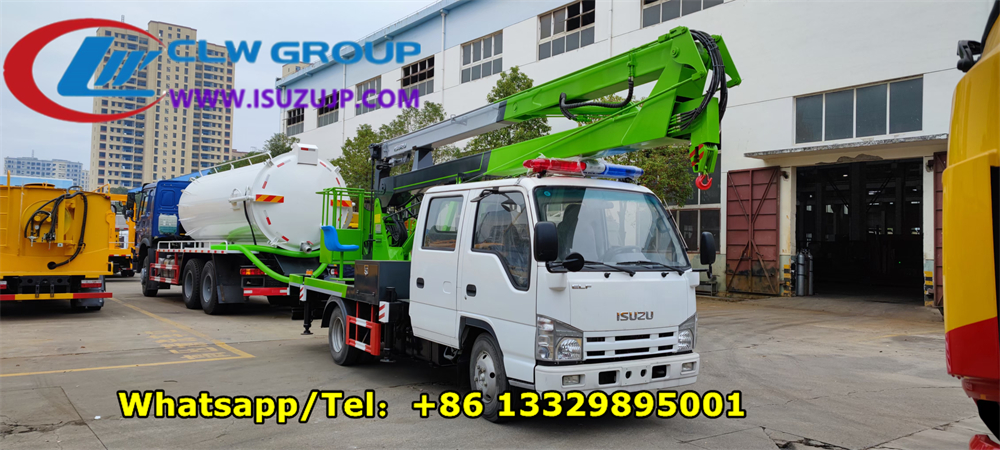

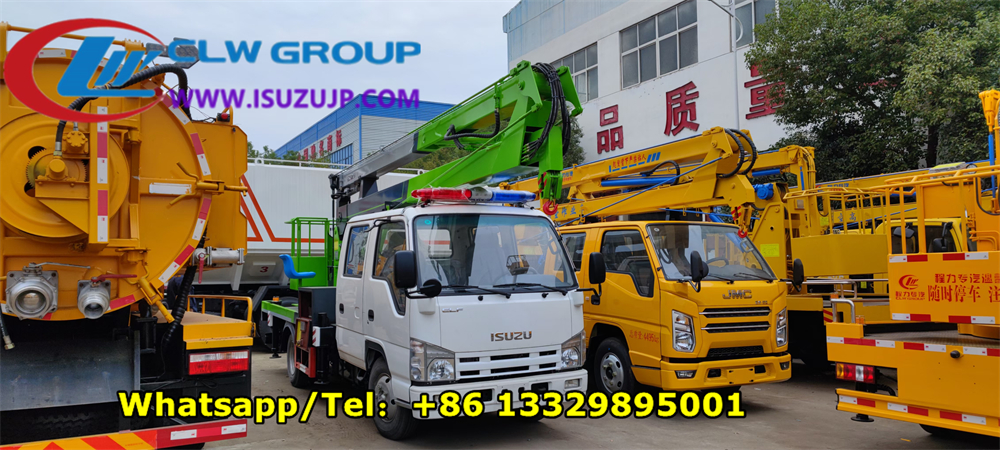

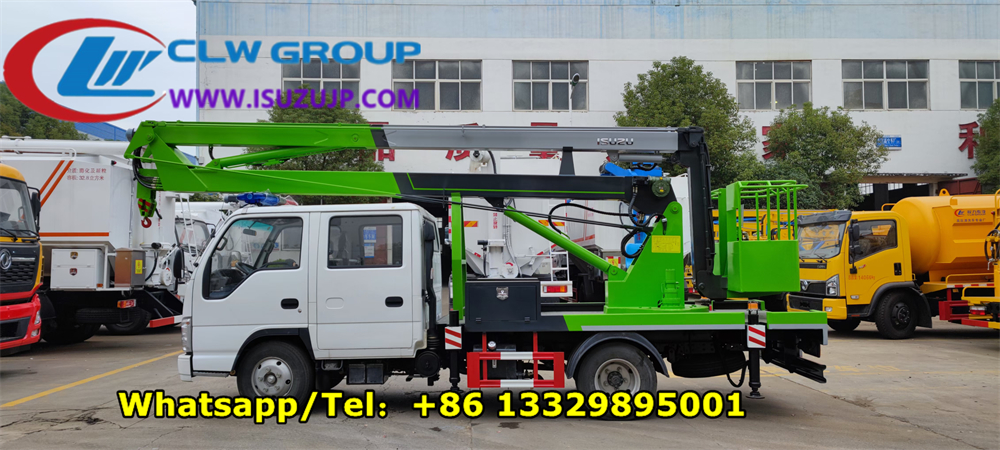

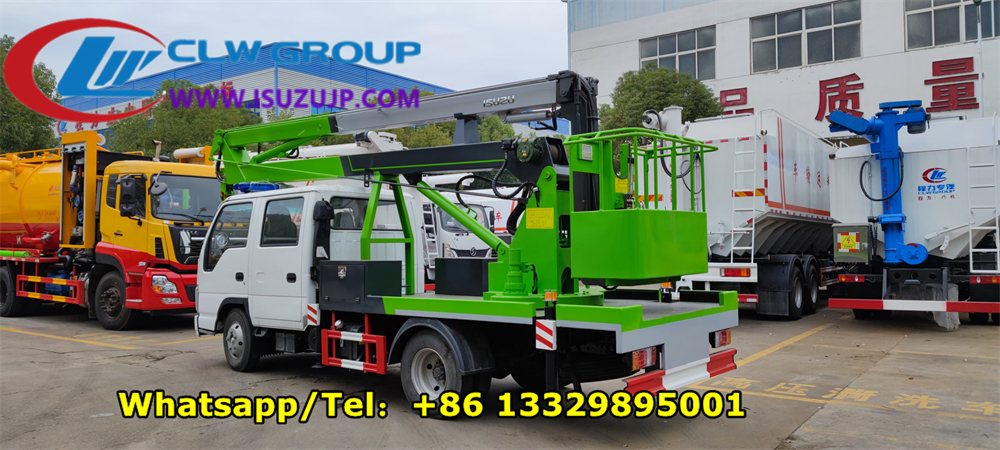

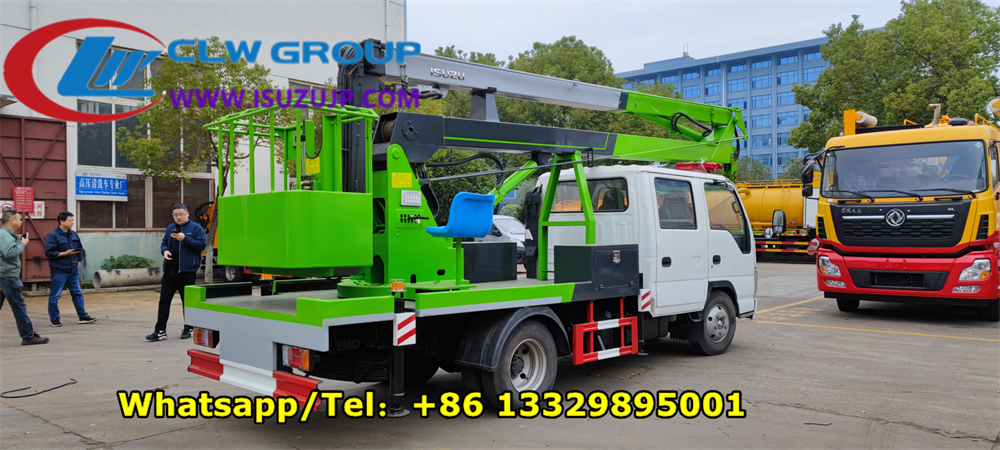

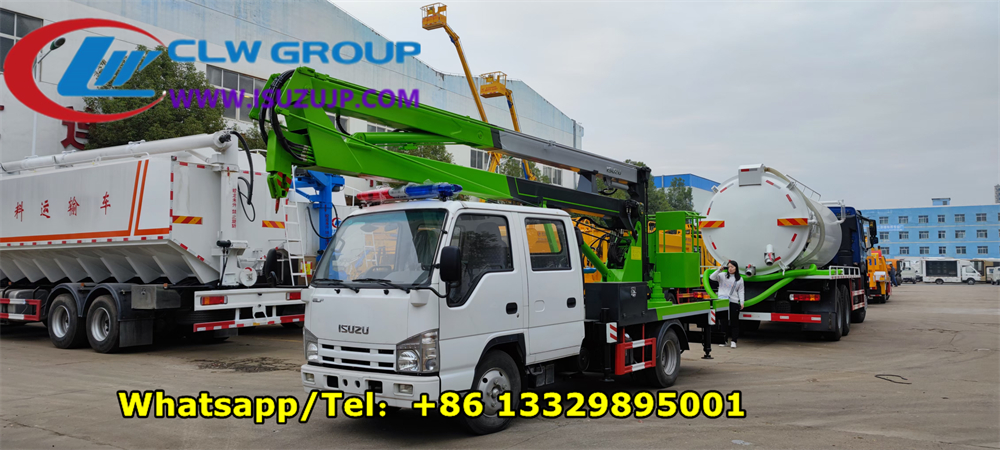

Isuzu 16 meters Double Cabin Aerial Work Vehicle

Isuzu 16 meters Double Cabin Aerial Work Vehicle
Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
Full Computer Control System with Danger Waring System.
LCD Screen in Both the Bucket and Truck to Display the Working Status.
Rectangular Shape Arms to Increase the Arm Strength.
V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.
Product Description

ISUZU Aerial Platform Truck
Overall dimensions
8450×2050×3100 mm
Wheel base
3800 mm
F/R track base
1015/2280mm
Approach/departure angle
24/10°
Front / Rear Axle
2Ton / 4.8Ton
Cabin
ISUZU 600P cabin, Double Row, Left Hand Driving, with A/C, Radio
Engine
4KHF-TCG40, Diesel type, 4 Stroke, 4 Cylinder in line, Turbocharged, Inter cooling, Euro IV
Displacement/ HP
2999ml / 120hp
Gearbox
ISUZU 5 foward &1 reverse
Steering Gear
Hydraulic Power Steering
Max speed
90 km/h
Tire specification
7.00-16, 6 Pieces
Traction system
4x2
Equipment
1. Max operation height:16m
(including 1.7meter person height, net height is 14.3meter),
2. Max operation radius≤ 9.2m,
3. Max working platform height≤12.5m,
4. Working platform rating loading≤200kg,
5. Working platform rating allowable passengers=2,
6. Working platform dimension:1100*570*1000mm,
7. 360°turning(left or right), 4 H-shape legs.
8.The cage be operated both in the air and on the earth
9. Control System: Manually
10. Hook Lifting Height: 6meters, Hook Lifting Weight: 800kg
