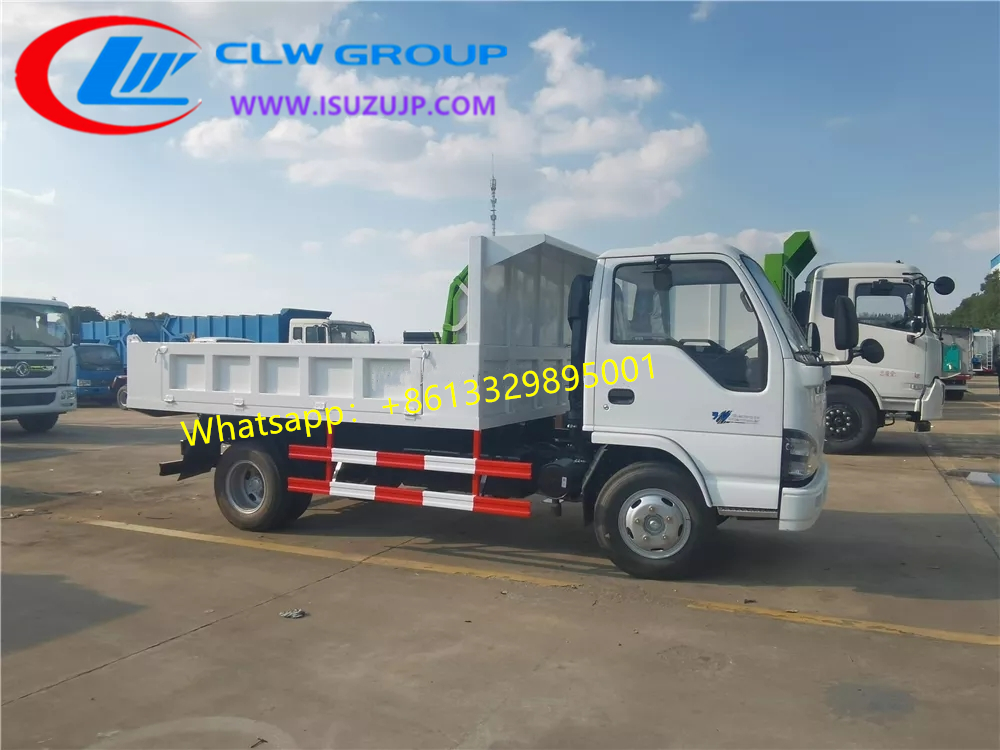

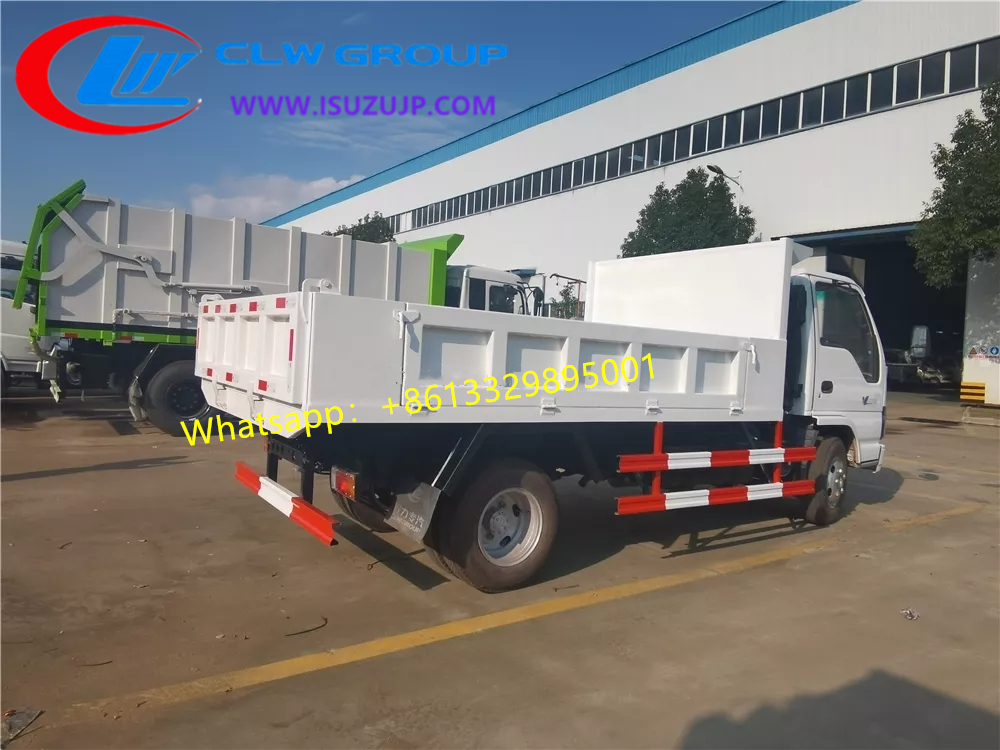

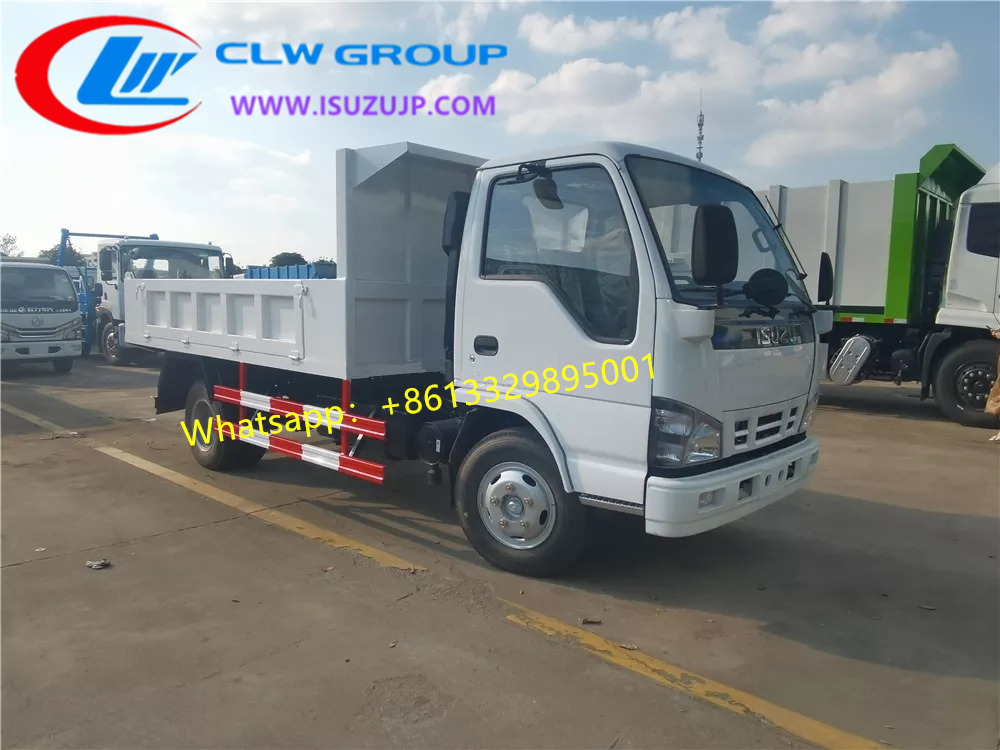

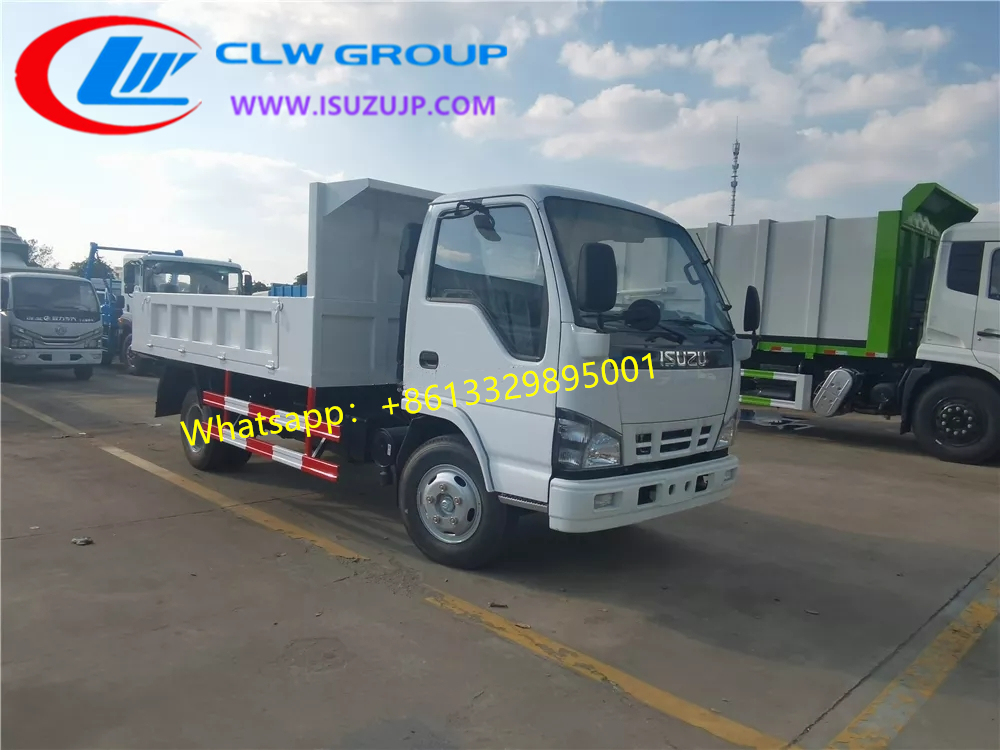

Japan ISUZU 4x2 type small tipper dump trucks for sale

Model Name
Japan ISUZU 4x2 type small tipper dump trucks for sale 5~6tons
Driving Type
4×2, left hand drive
Weights
Rated payload weight(kg)
5000~6000
Curb weight(kg)
Approx.3800
Dimensions
Wheelbase(mm)
3360
Overall Dimension(mm)
Approx.5700×2000×2350
Box dimension (mm)
Approx.3600×1750×800
Box thickness (mm)
Bottom 4mm, side 3mm, middle lifting
Max speed(km/h)
90
Engine
Engine model
4KH1-TCG40 (120HP)    OR 130HP,EURO 5
Emission standard
Euro 4
Engine type
Inter-cooling, water-cooling, turbo-charged,
No. of cylinders
straight-4 cylinders
Displacement(L)/power(kw)
2.999L/88kw
Drive Line
Transmission
MSB,5 forwards,1 reverse gear, manual operation
Brake
Oil brake
Cab
Cabin
Isuzu 600p single row
Standard configuration
with A/C
Axle
Front axle
2.5 tons
Rear axle
4.8tons
Tire specification
Tire specification
7.00-16,6 tires+1 spare tire
Tipper box

Box volume(mm)
3600×1750×600
Box material
reinforced Iron plate
box thickness(mm)
Bottom 4 mm, side 3 mm
Box lifting model
middle lifting
