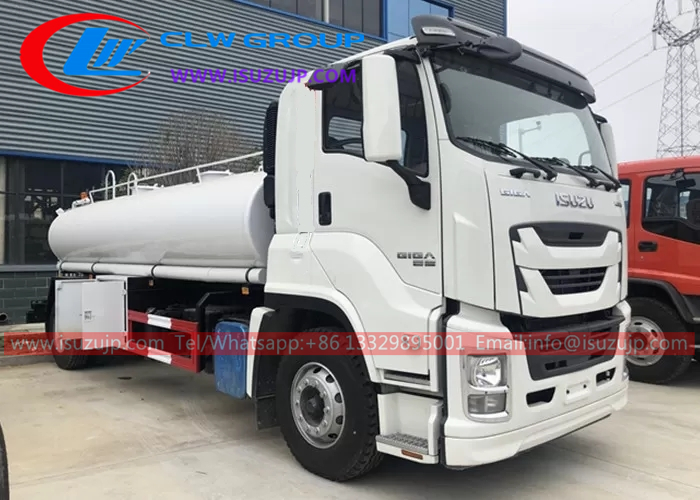

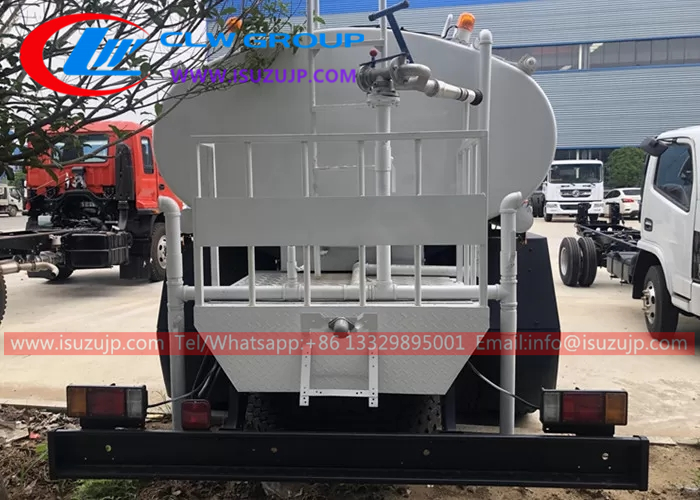

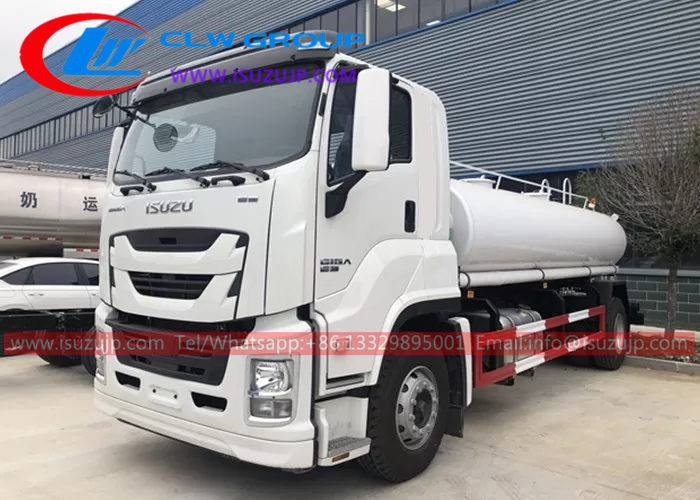

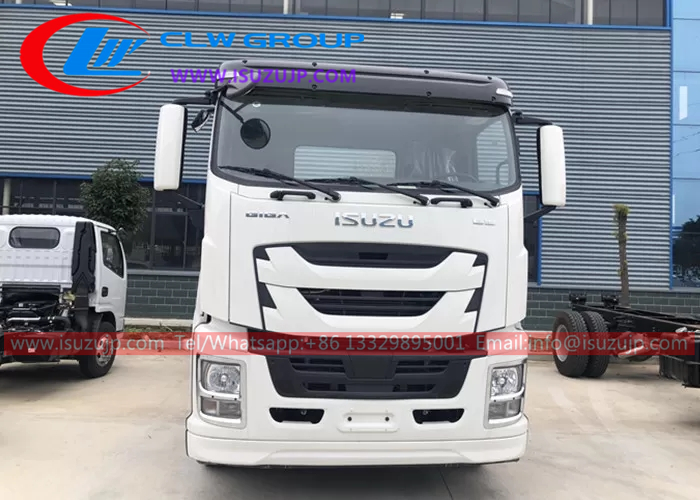

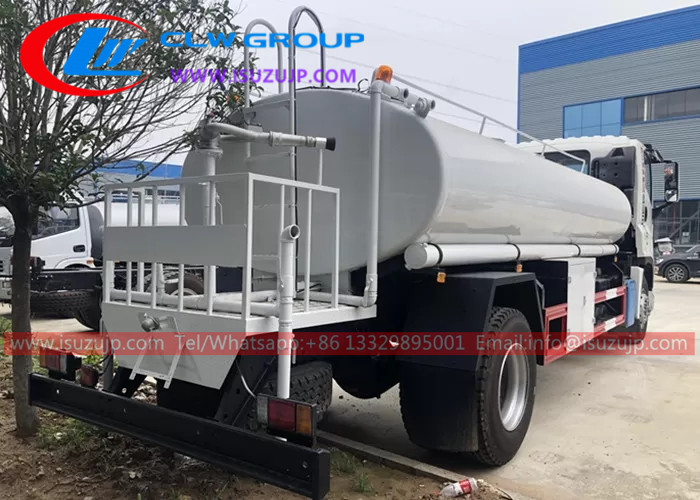

4x2 ISUZU GIGA 12000L Food grade drinking water tanker

4x2 ISUZU GIGA 12000L Food grade drinking water tanker

Product Description

4x2 ISUZU GIGA 12000L Food grade drinking water tanker is produced for transportation and distribution of industrial and drinking water, spraying and washing of streets and tunnels, dust and environmental control and fire-fighting purposes.In order to achieve those different operations, each water tank truck could be equipped with various components to realize different function.

1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2. Material of portable water truck: High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck: ≥14M
4. Rear working platform with water cannon range of portable water truck: ≥28M
5. Reliable and high quality water pump

4x2 ISUZU GIGA 12000L Food grade drinking water tanker product Specification

project
description
parameter

Chassis parameters
Model
QL1110ANLAY
Power(HP)
190
Wheelbase(mm)
4500
Vehicle parameters
Maximum total mass(kg)
18000
L×W×H(mm)
8450×2500×3150
Curing quality(kg)
7305
Operating performance parameters Tank
effective volume(m3)
11(Actual 12.73 m3)
Working speed(km/h)
5～20
Sprinkling width(m)
≥16
Sprinkling capacity(L/ m2)
0.2～2.0
Nozzle Flush System Pressure(kPa)
≥300
Gun flushing flow rate(L/min)
≥60
Spray gun range(m)
≥25
Self-priming height(m)
6.5
Opposite flush width(m)
24
